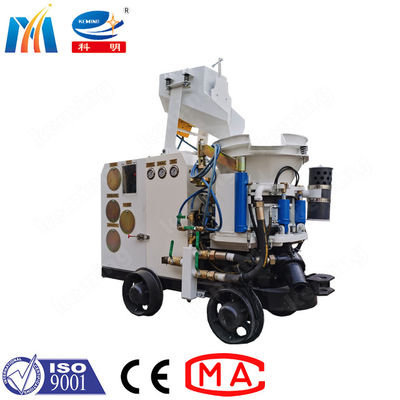

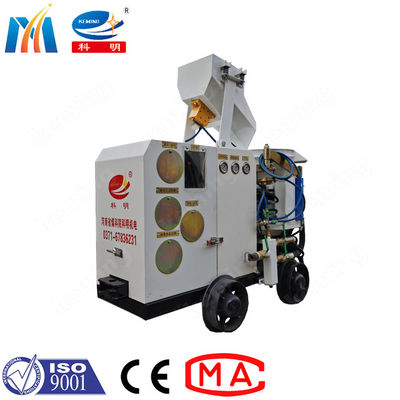

500 M Long Spraying Distance Concrete Spraying Machine With Hydraulic Automatic Pressing And Lubrication System
Small Remote Concrete Spraying Machine Introduction:
1. PYC6I is a long-distance concrete conveying and spraying equipment for the directional development of small and medium-sized engineering and mining engineering, PYC15I is a special equipment for the directional development of pneumatic conveying of bean gravel in TBM shield construction, this equipment has the function of concrete spraying and conveying at the same time.
2. Automatic lubrication of the joint surface of the joint plate and the steel liner plate to ensure sealing performance, effectively reduce the wear of moving parts, prevent pressure air leakage, and improve the utilization rate of pressure air
3. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly, and the accelerator can be added automatically.
Small Remote Concrete Spraying Machine Features:
1. PYC6I is a long-distance concrete conveying and spraying equipment for the directional development of small and medium-sized engineering and mining engineering, PYC15I is a special equipment for the directional development of pneumatic conveying of bean gravel in TBM shield construction, this equipment has the function of concrete spraying and conveying at the same time.
2. Automatic lubrication of the joint surface of the joint plate and the steel liner plate to ensure sealing performance, effectively reduce the wear of moving parts, prevent pressure air leakage, and improve the utilization rate of pressure air
3. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly, and the accelerator can be added automatically.
Small Remote Concrete Spraying Machine Technical Parameters:
| Basic parameters |
Unit |
Parameters |
| Max. capacity |
m3/h |
2-6 |
| Max. delivery distance |
m |
240 |
| Max aggregate size |
mm |
15 |
| Hose ID |
mm |
51/57 |
| Pressure |
Mpa |
≥0.6 |
| Air consumption |
m3/min |
5-15 |
| Feeding height |
m |
1.15 |
| REV. of rotor |
r/min |
11 |
| Power |
kw |
7.5 |
| Voltage |
V |
380/660V or 660/1140V |
| Dimension(L*W*H) |
mm
|
1800×784×1712 |
| Weight |
kg |
1110 |
Service:
mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
